Create a linear dimension aligned to input points.
Click on start point Click on end point
Click on a point on the current UCS plane to define position of the dimension line.
The style, color and input text can be modified trough the dimension styles tool box.

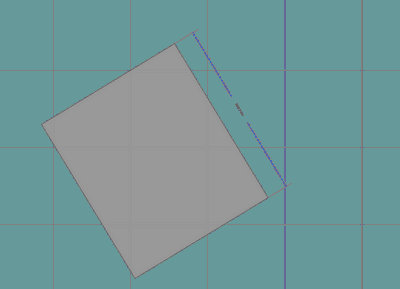

Aligned dimension line |
