Create a generic beam
The command prompts for 2 points and a new beam is inserted in the scene.

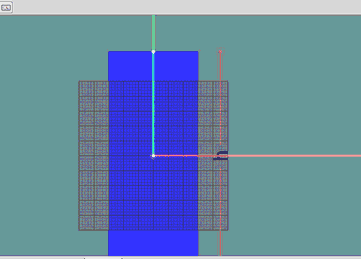

The beam cross section and alignment edge can be selected from the Profile window
Click in the profile window to snap at a edge point ( middle or end point ), this point will become the
insertion edge for the created beam.

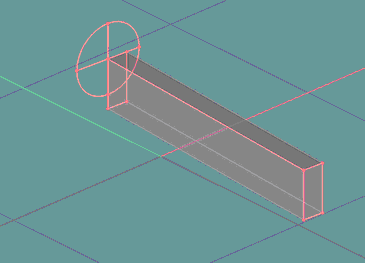

Beam inserted with edge line placed at a profile corner
