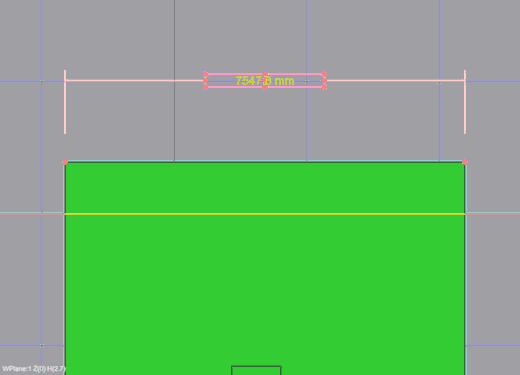

Create a horizontal dimension line.


Click on start point

Click on end point


Click on a point to define position of the dimension line.


The style, color and input text can be modified trough

the dimension styles tool box.


Once inserted a dimension line can be dragged to a new position or expanded to measure a different distance
