Boolean intersect



Intersection between a closed poly-line or a Brep

and a set of closed poly-lines or Breps.



Select a single poly-line  or a Brep and right mouse click to confirm.

Select a set of closed poly-lines or a set of Breps to union with previous shape.



Options:



Delete A        :  Remove first shape after boolean  operation

Delete B        :  Remove second set of shapes after boolean operation





clip0157

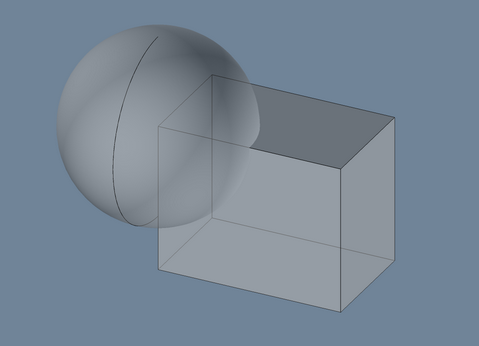

Breps before boolean intersect





clip0158

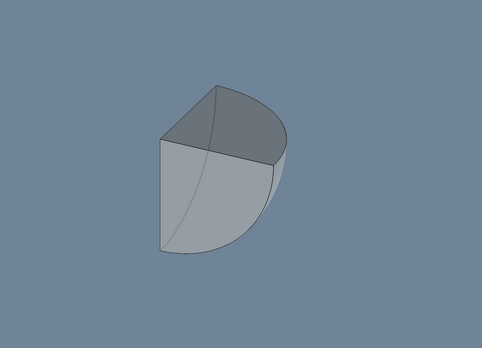

Boolean intersect result
