Rectangular Array

Top  Previous  Next



rect_array



Copy selected entities in a grid



1.Select objects to copy

2.Input number of entities in X direction

3.Enter distance between objects in X direction

4.Input number of entities in Y direction

5.Enter distance between objects in Y direction

6.Input number of entities in Z direction

7.Enter distance between objects in Z direction







RECT

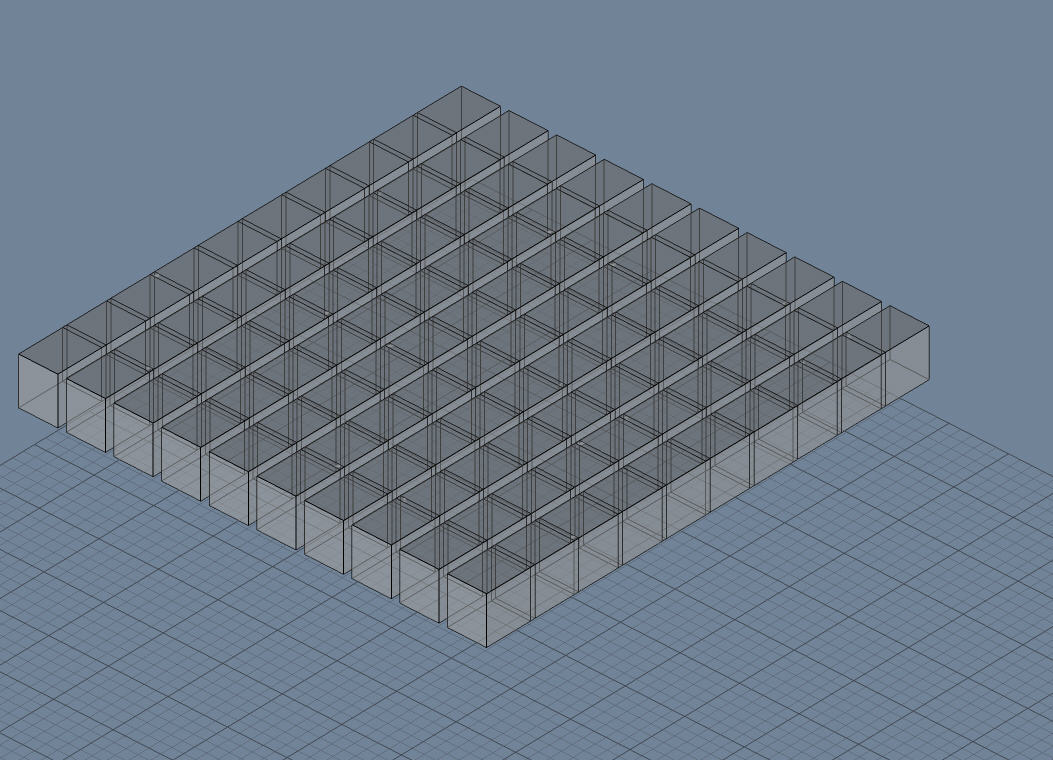

Rectangular Array applied to a box with 100 copies
