Boolean Subtraction
Subtraction of a set of poly-lines or a Breps from a source poly-line (Brep)
Select a single poly-line or a Brep and right mouse click to confirm. Select a set of closed poly-lines or a set of Breps to union with previous shape.
Options:
Delete A : Remove first shape after boolean operation Delete B : Remove second set of shapes after boolean operation

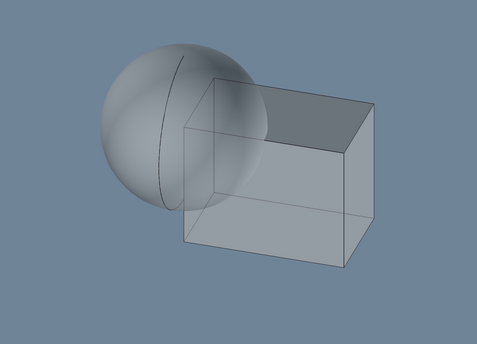

2 Breps before boolean subtraction

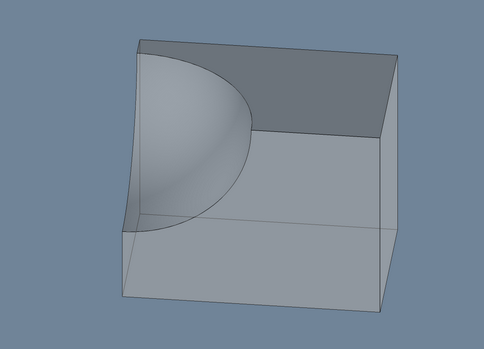

Boolean subtraction result

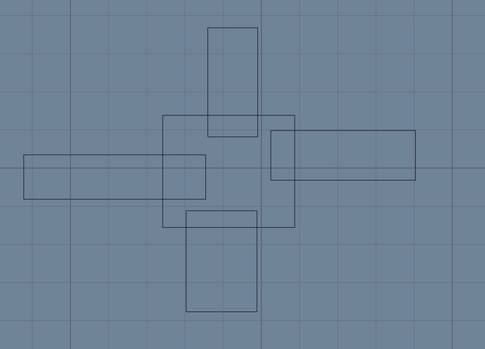

Boolean subtraction between poly-lines

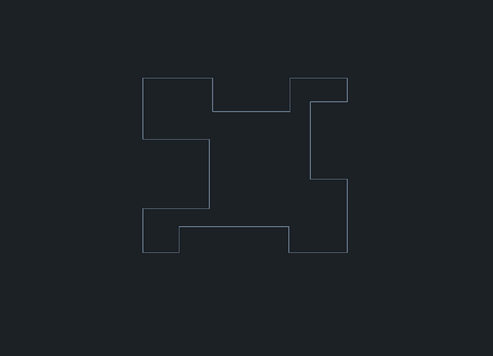

Result after boolean result
|
