Curved Beam

Top  Previous  Next



clip0094





Create a extruded beam on the current layer.



Select creation method at the command prompt:



Center Start End        : Create a beam arc by center point , start point and end point

Start End On                : Create a beam arc by start point, end point  and a point on the arc

Start On End                : Create a beam arc by start point, point on the arc and end point

Start End  Direction        : Create a beam arc by start point, end point and initial tangent vector







clip0093

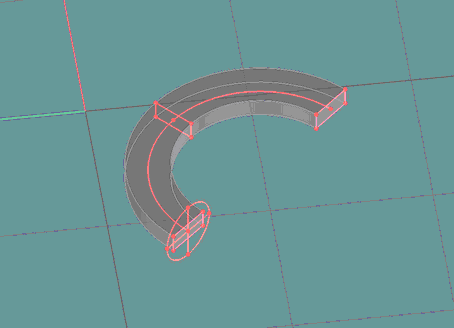

Once inserted the beam orientation can be modified by rotating one of the handles

that compare when we select the column.
