Click on a Brep edge to measure it.
Drag the mouse away from the edge to place the dimension line.
Edges are measured aligned to the current UCS plane.

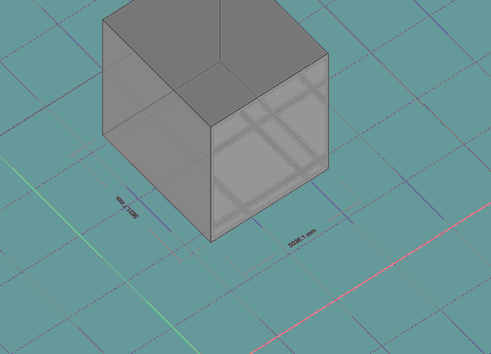

Edges and UCS plane aligned

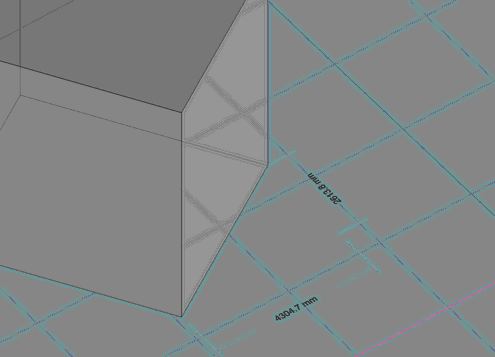

Edges and UCS plane not aligned
