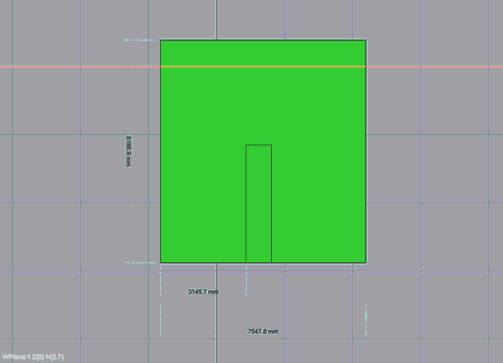

Create a vertical dimension line.
Click on start point
Click on end point
Click on a point to define position of the dimension line.
The style, color and input text can be modified trough
the dimension styles tool box.
