Bump

Top  Previous  Next

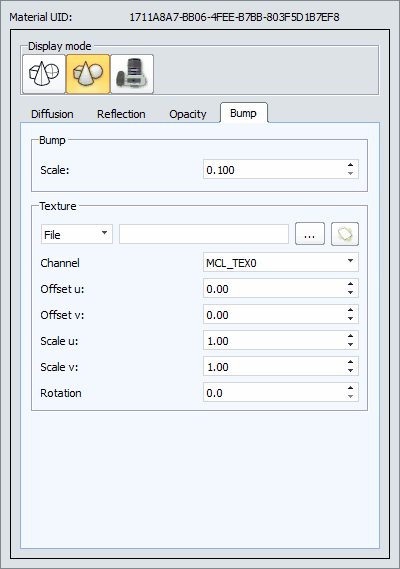

The Bump terms simulates 3d effect using a texture to offset

pixels while rendering.



Scale                :   Scale of the bump effect

Texture        :   A normal map will be computed out of the texture with black areas flat and white with maximum bump effect applied.





Channel        : the texture channel , current version implements only the TEX0 channel

Offset u,v        : texture offset in U and V direction in normalized units

Scale u,v        : texture scaling

Rotation        : rotation of the texture image around up W axis





clip0014
