Like all CAD systems objects in the CAD database

are placed on layers.

in ixCube a layer is a simple Named Object  with

a color , a visibility state and a locked state.

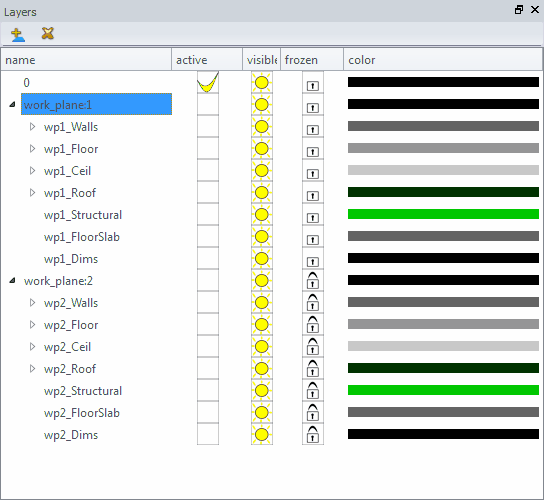

From the Layer browser we can  change  :


Name                :  Click on the name a keep down the mouse button to enable name editing

Visibility        :  Click on the Sun  to deactivate/activate  the layers visibility

Lock State        :  Click on the frozen column to lock/unlock the layer

Color                :  Click on the color drop down list to change layers color
