Vertical Beam

Top  Previous  Next




Insert a vertical beam (column).

If a work-plane exists and the current window is the plan window

the columns will have the work-plane height and will be placed on the

work-plane structural layer.


if the current view port is a 3d window then the height of the columns must be inserted

after clicking on the column insertion point.

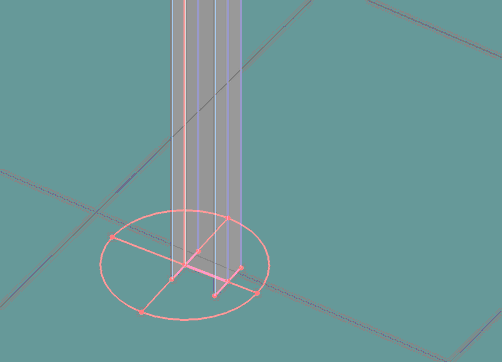

Once inserted the beam orientation can be modified by rotating one of the handles

that compare when we select the column.
